Bus bars

A laminated bus bar is an engineered component consisting of layers of fabricated copper separated by thin dielectric materials, laminated into a unified structure.

Mersen bus bars offer many advantages:

  • Bus bars reduce system costs. A laminated bus bar will lower manufacturing costs by decreasing assembly time as well as internal material handling costs.
  • Bus bars increase capacitance. Increased capacitance results in decreasing characteristic impedance. This will ultimately lead to greater effective signal suppression and noise elimination.
  • Bus bars lower inductance. The use of thin parallel conductors with a thin dielectric, laminated together minimizes the effect of inductance on electrical circuits.

Laminated bus bar

SPM laminated bus bar mersen

Laminated bus bar

A laminated bus bar is an engineered component consisting of layers of fabricated copper separated by thin dielectric materials then laminated into a unified structure.



Powder-coated bus bar

SPM powder coated bus bars mersen

Powder-coated bus bar

Powder-coated bus bars feature a quality epoxy finish with high dielectric protection for bus bars with geometric forms, or those used in harsh environments.

Monitoring smart bus bar

PHP Battery monitoring bus bar Mersen

Monitoring smart bus bar

Smart monitoring laminated bus bar's are designed for electric vehicles and stationary storage which can handle both high power and small control signals in a single battery connection solution.

Bus Bar Value-Add Assemblies

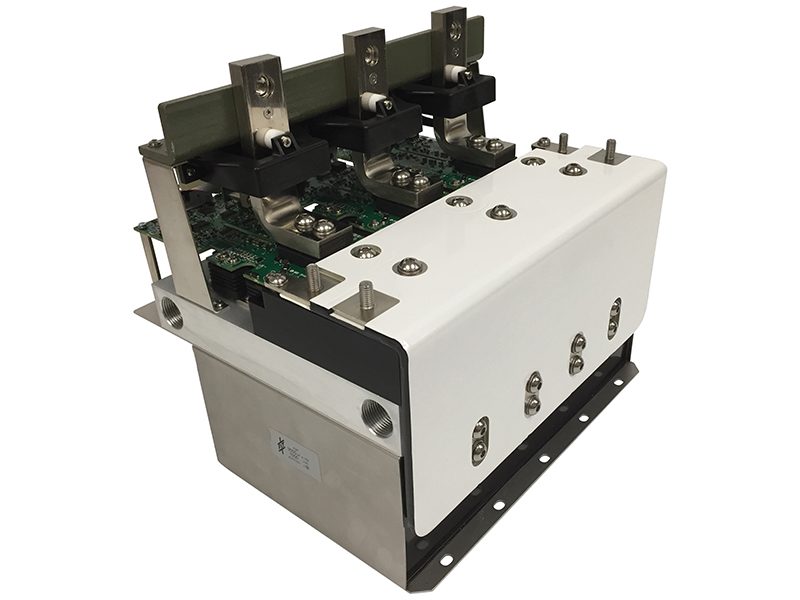

IGBT power stack Mersen

Bus Bar Value-Add Assemblies

Mersen provides full component assembly services, where power modules, cooling, bus bars, capacitors and other typical sub components can be assembled in house and shipped as a fully assembled unit.
