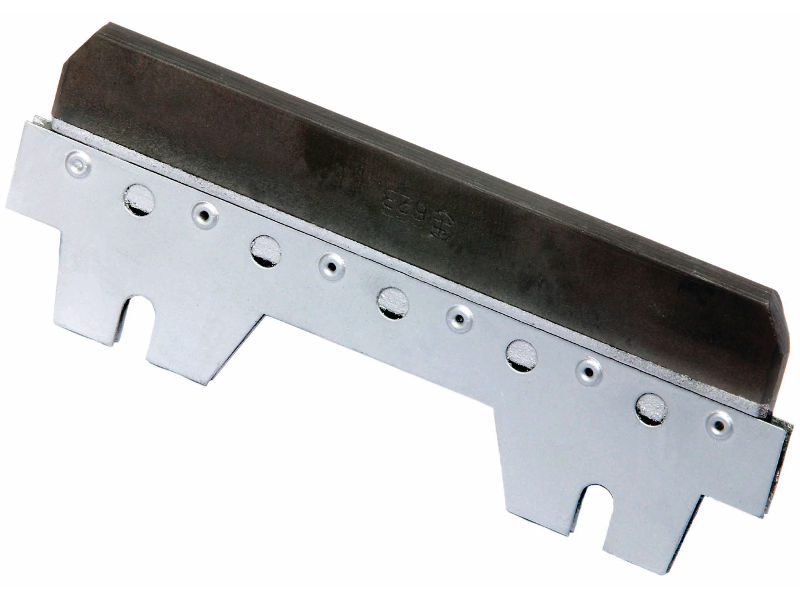

Current Collection Device (CCD) shoes

Mersen 3rd and 4th rail shoes for transit systems

Mersen offers a large range of CCD shoes for electrical current collection in urban networks. The diversity of products allows to find the most suitable solutions for each metro system. The use of carbon allows to reduce friction, and therefore protects the power rail and improves its lifetime.

Advantages

  • Resistance to mechanical impact
  • Ability to withstand high starting / regenerative / stopping current loads
  • Good sliding properties and lubricating power
  • Non destructive to the power rail

Mersen grades for CCD shoes

CCD shoe designs

  • Welded, bonded, crimped, bronze-casted or EcoDesign assembly
  • Sheaths in aluminum, copper or steel
  • Option of metal nose pieces

Applications

  • Metro
  • LRV (light rail vehicles)
  • People movers (for example airport shuttles)

EcoDesign CCD shoe, a dismountable and recyclable system

Mersen offers recyclable solutions

Today’s requirements for technical performance cannot go without environmental performance.

Let’s take the example of a CCD shoe, used to transmit power from the 3rd or the 4th rail to the railcar system traction unit. The only wear part is the carbon strip; all the other components would in most cases not need to be replaced. However, as the strip is currently assembled by welding or bonding, the whole shoe is scrapped after use, which is a waste of resources and money.

Mersen have pioneered and patented a 3rd rail CCD shoe called « EcoDesign ». The concept is to reuse all the metal components (carriers and bolts) with the replacement of the carbon wear strip only.

Using a new assembly method, Mersen takes one step forward on the road to Eco-responsibility in eradicating the need for lead brazing and associated chemical products, and reducing the power consumption of the manufacturing process.

For Mersen customers, the use of the “EcoDesign” shoe allows them to reduce waste production and consequently decrease the environmental footprint of their operations.
